Model 2400

The Mechanical Automatic Parachute Ripcord Release, Model 2400 is designed to withdraw the ripcord pins from a packed parachute at 14,000 feet above sea level altitude after the 2 seconds time delay has elapsed.

SKU: 811-00357 Category: Tags: ,

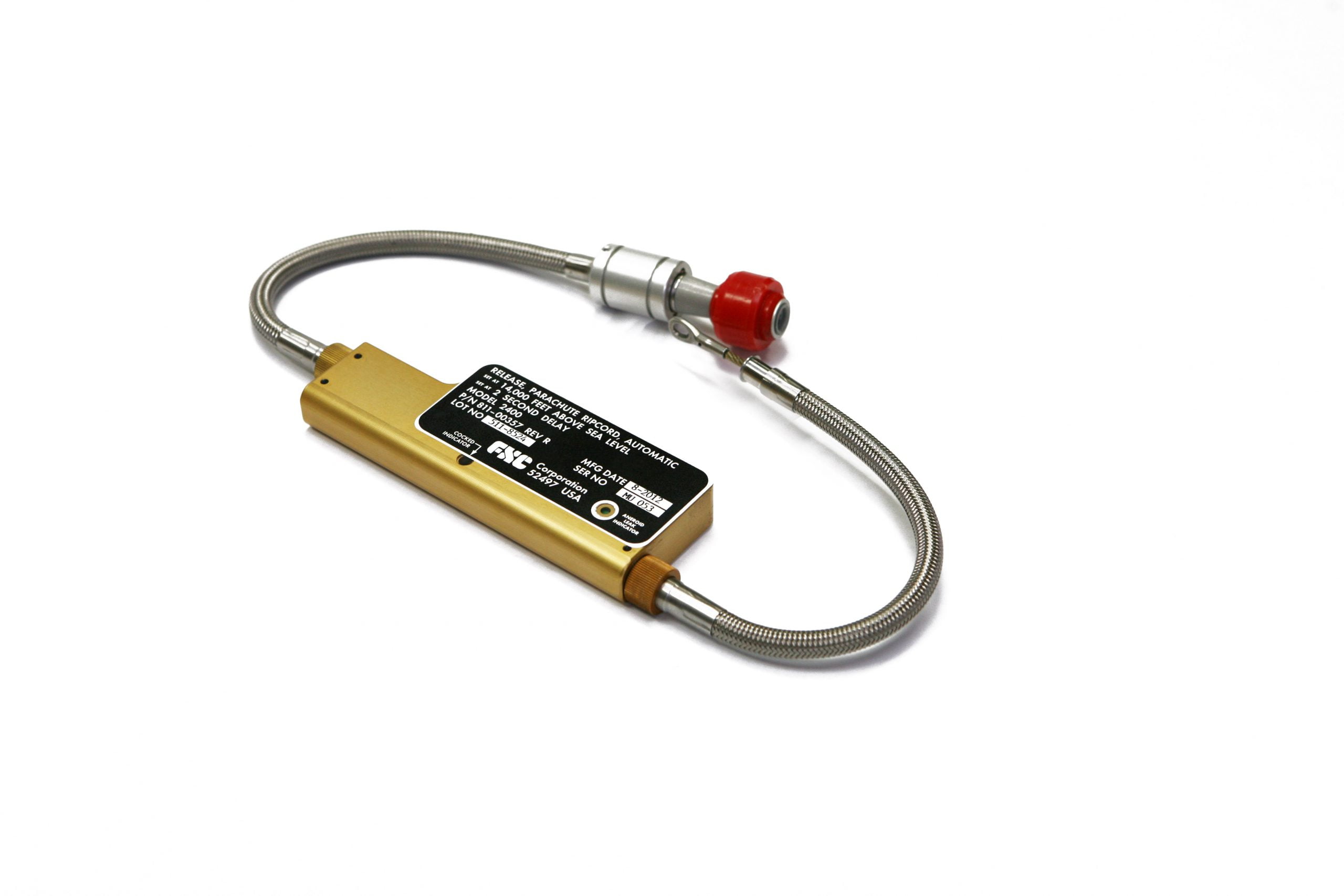

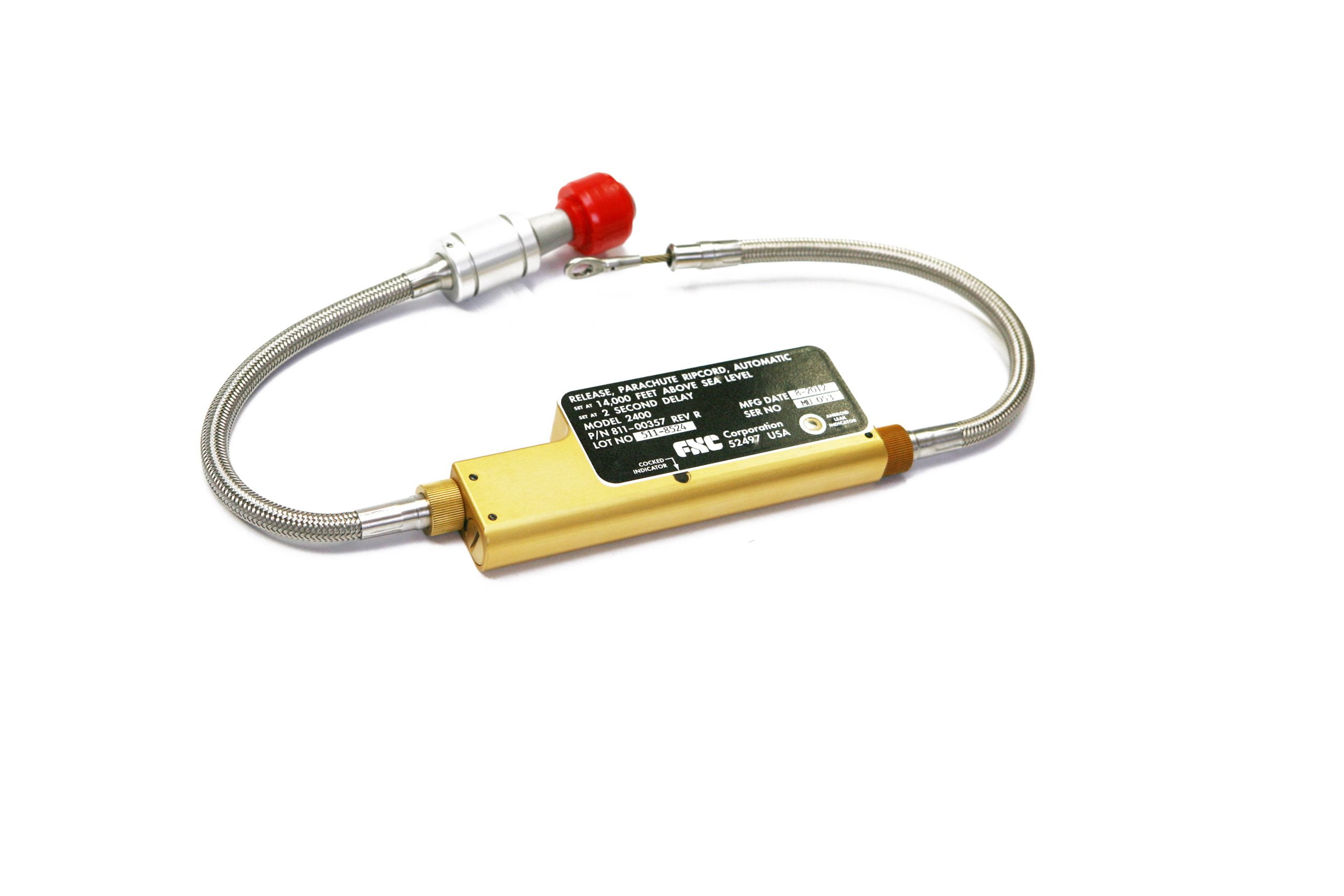

The Automatic Parachute Ripcord Release, FXC Model 2400 is a precision device designed specifically for dual application use for in-flight emergency egress escape bail-out conditions and for pre-meditated parachute jump scenarios.

After arming, the function of the unit is to automatically withdraw the ripcord pins from the parachute pack from a high altitude descent when 14,000 feet above sea level is sensed and activates a two-second time delay. When armed, and below a sensed 14,000 feet altitude at egress, the two-second delay releases the parachute pack pins if the user has not already pulled the main ripcord handle.

The FXC Model 2400 is completely mechanical in action, not relying on batteries, squibs or pyrotechnic devices. The factory pre-set altitude setting establishes the altitude above which the unit will not activate. The time delay mechanism controls the actual retraction of the power cable, which will pull the parachute ripcord at or below preset altitude.

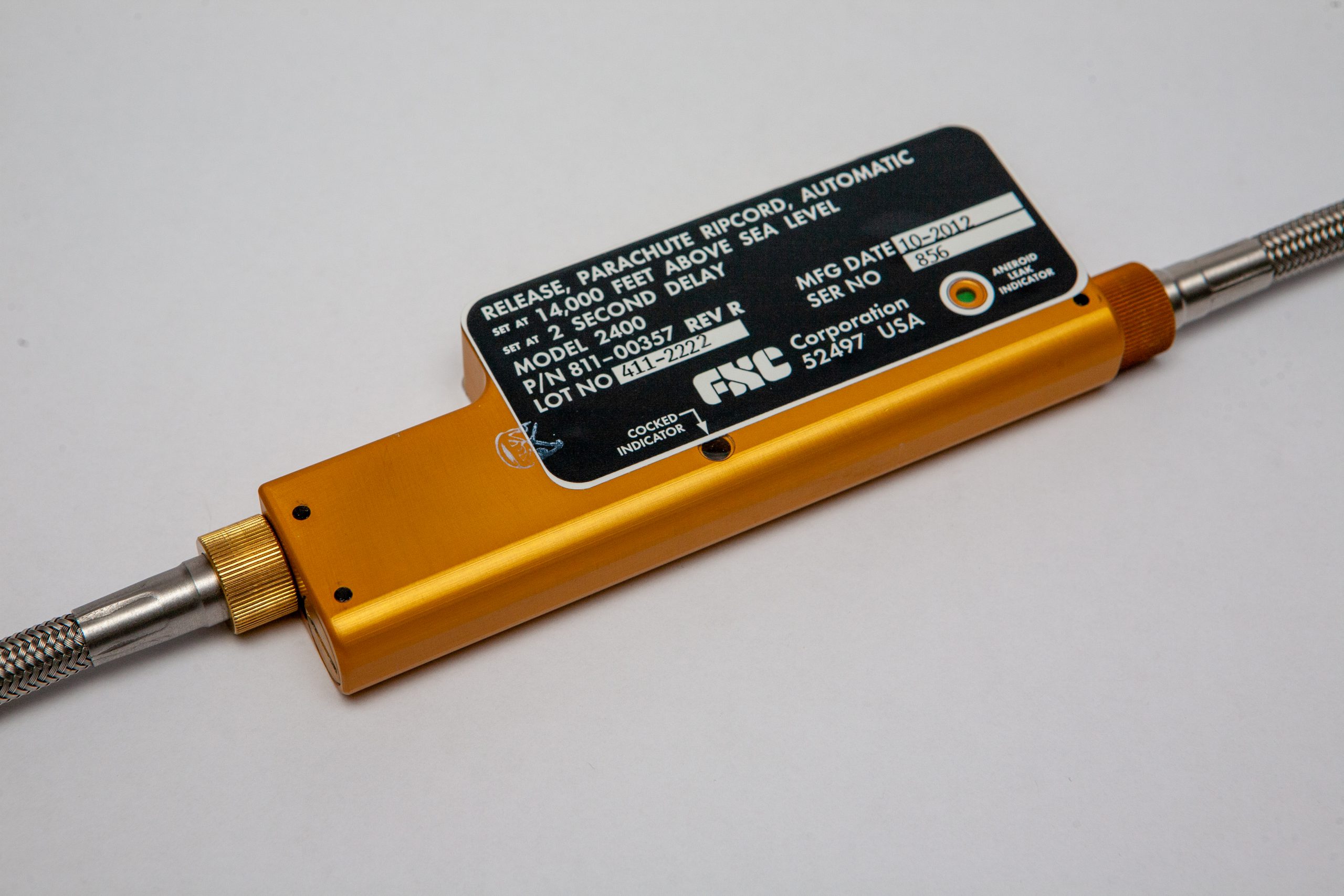

The unit has an ARM Indicator Window, when the unit is fully cocked a green mark will appear in the window. The unit also has a Leak Indicator Window to warn inspecting personnel of a leaking aneroid.

The unit becomes active when the Arming Cable Handle is pulled prior to aircraft egress. This action initiates the timer mechanism and enables retraction of the Power Cable when sensing the wearer is at, or below, the factory pre-set altitude.

The Model 2400 design is flexible to permit a range of factory pre-set time delays to meet the particular mission and emergency egress scenarios of our customers.

Additional information

Weight 12 lbs
Dimensions 14 × 15 × 2 in
Type

Mechanical

Control

Barometric pressure and time delay.

Actuating Altitude

Preset at 14,000 feet above sea level.

Time Delay

Preset at 2 seconds.

Arming Force Retraction

10 to 20 pounds.

Ripcord Power Cable Stroke

80 pounds minimum at release point.
50 pounds at minimum 1.0 inch stroke.

Actuation of unit

100 times.

Arming Cable Assembly Kit

P/N 811-00458

Power Cable Assembly Kit

P/N 811-00459

Model 2400 Cocking Fixture

P/N 811-00394
